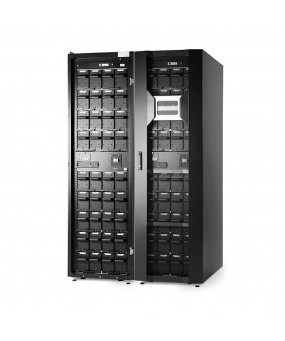

Industrial modular UPS HELIOS_MPW
The HELIOS_MPW is the ultimate modular UPS for DATA CENTRES and other CRITICAL LOADs. The HELIOS_MPW is designed to protect any critical high-density computer and IT environment, whilst achieving maximum availability. The HELIOS_MPW grows along with the demands of the business without over-sizing the UPS - optimizing both the initial investment and the Total Cost of Ownership. As soon as demand increases, the HELIOS_MPW modular solution can expand its power capability, maintaining the highest levels of power protection, availability, redundancy and investment savings.
HELIOS_MPW provides a comprehensive, easy to integrate power protection solution for data centres and any critical IT application matching the evolving demands of a networked environment. The end user can easily increase power, redundancy level and battery autonomy by simply adding additional UPS Power Modules (PM) and Battery Units (BU). Three different cabinets are available to build the system: the Power Cabinets (MPW and MPX type) and the Battery Cabinet (BTC). The Power Cabinets can accommodate either 15 kW (HELIOS_MPW_M15), 25 kW (HELIOS_MPW_M25) or 42 kW Power Modules (HELIOS_MPW_M42). The available UPS power and redundancy level can expand vertically from:
• 15 to 75 kW in one single Power Cabinet (HELIOS_MPW_PWC130 with M15)
• 25 to 125 kW in one single Power Cabinet (HELIOS_MPW_PWC130 with M25)
• 42 to 294 kW in one single Power Cabinet (HELIOS_MPW_PWC300 with M42)
Up to four complete Power Cabinets can be connected in parallel, increasing the capacity including redundancy respectively from:
• 75 up to 300 kW (M15)
• 125 up to 500 kW (M25)
• 294 up to 1176 kW (M42)
The Battery Cabinet accommodates multiples of 4 Battery Units, with up to 36 units within a single frame with
a maximum of 10 Battery Cabinets connected in parallel. In addition, the Multi Power is available as optimized solution providing a Multi Power/Battery combination with the Combo Cabinet (MPW and MPX type). This solution can be utilized within extremely compact areas requiring a small footprint with maximum power density. This modular and reliable solution is perfect for any small to medium business applications.
The user might decide to build the solution using the combination of three MPW 42 PM and five battery shelves (HELIOS_MPW 130 CBC) or four M15 / M25 and six battery shelves (MPX 100 CBC) not mingling the two power rates in the same cabinet.
