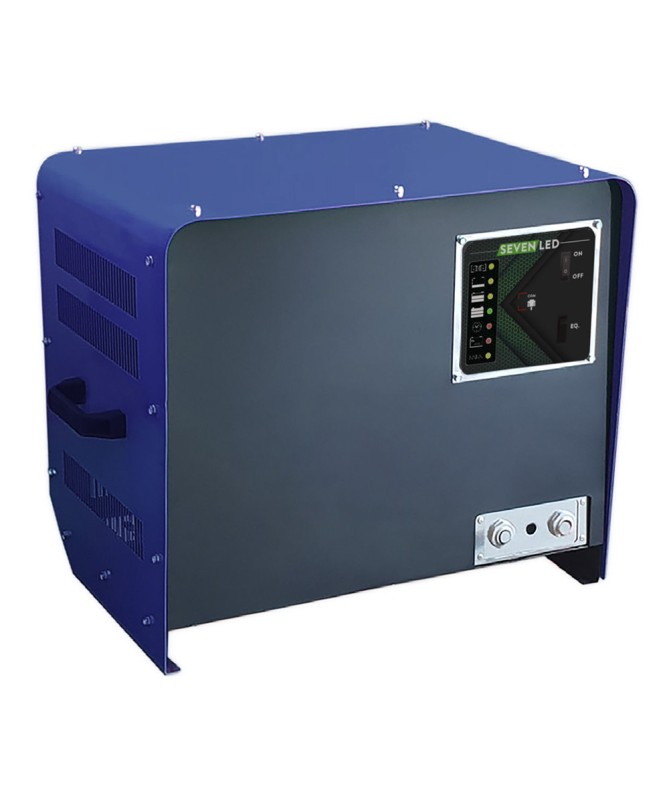

ATHENA LED 60-120A

Compact charger with seven LED control board for efficient charger

ATHENA LED offers a wide range of chargers, three-phase and single-phase, compact and easy to handle, managed by a microprocessor control board with 7 LED display, extremely simple and intuitive. ATHENA LED is an extremely handy and reliable charger, with a Wa charging profile and an efficiency greater than 90%

Specifications

- Display of charge status with 7 LEDs

- Very high efficiency over 90% and Power factor of 0.80, allow low energy consumption for charging

- ON/OFF switch for enable or disable the charge

- External button for programmable equalization and weekend charge

- Quick test for charger functional verification

- Proportional charge function for shallow discharges

- Maximum and minimum voltage control before charging starts

- Maximum voltage control in charge

- Final charging time that can be set to adapt the charge cycle to battery conditions

- Autostart with programmable delay

- Serial interface for highly precise programming and calibration

- Short circuit and reverse polarity protection

- Design, testing and production of transformers carried out internally

- Thermal protection on the power transformer to avoid over-temperature

- IP20 intrusion protection

- Excellent ventilation system for better cooling of the transformer

- Working temperature 0 – 50°C
