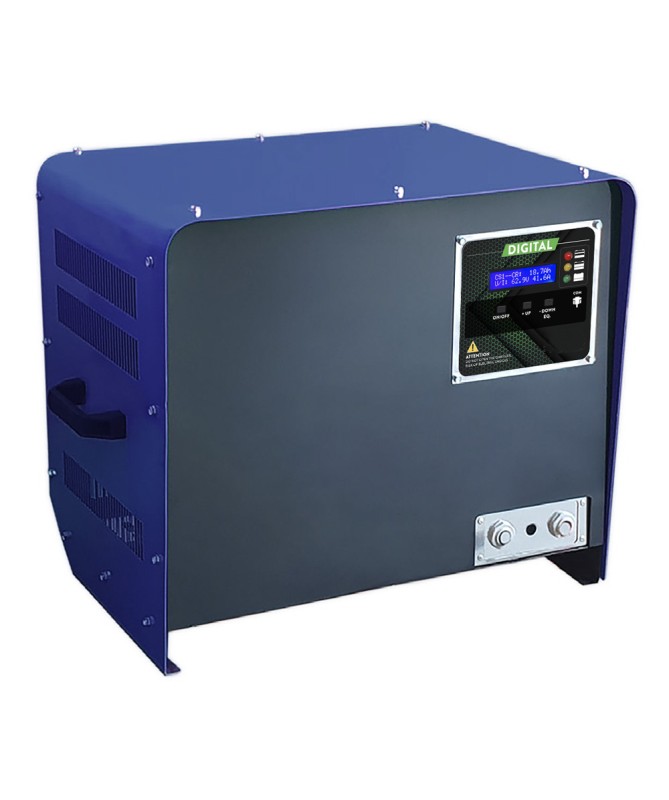

ATHENA DIGITAL 60-120A

Compact charger with LCD display for clear viewing of charging parameters

ATHENA DIGITAL offers a wide range of compact and handy chargers with modern digital technology. The control board allows you to view charging parameters, battery voltage, charging current, restored capacity, charging time, and easily configure charger features. The charging efficiency is more than 90%.

Specifications

- Indication on LCD of charge parameters: Voltage, Current, reintegrated Capacity, charge Time

- The simple keypad allows a safe configuration of the parameters: battery voltage, gas point voltage, final charging time, enabling equalization.

- Charging Profile available: Wa, W0Wa, W0Wp, opportunity

- Very high efficiency superior to 90% and Power factor of 0,80 allow low energy consumption and charging costs

- Equalization Charge and Maintenance Charge with programmable parameters

- Maximum and Minimum Voltage control before charging starts

- Maximum voltage control during charge

- Single board model from 12V to 96V

- Serial interface for highly precise programming and calibration

- Short circuit, overload and reverse polarity protection

- IP20 intrusion protection

- Internal Design, Testing and Production of Power Transformers

- Thermal protection on the power transformer to avoid over-temperature

- Conformal coating on the control card for moisture protection to grant high reliability

- Excellent ventilation system for better cooling of the transformer

- Working temperature 0 - 50°C
