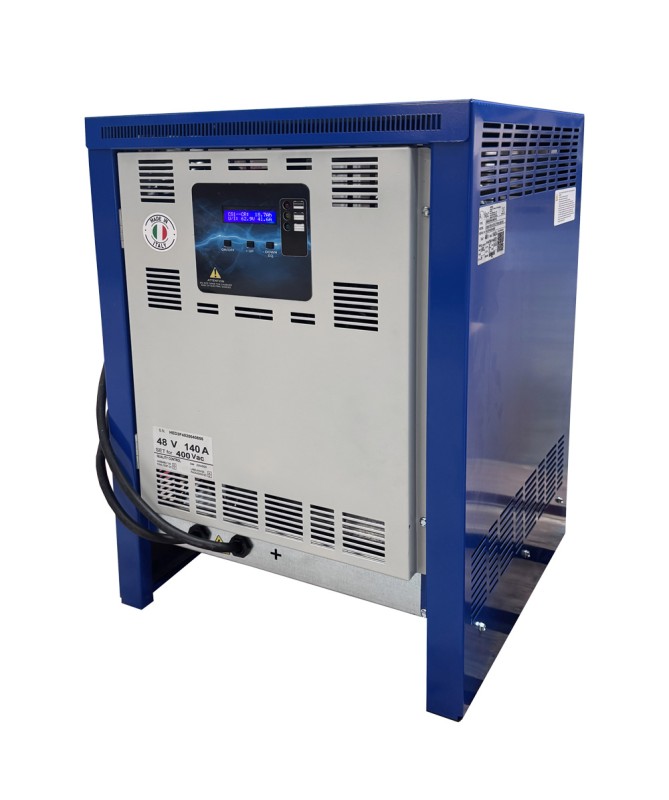

HERA DIGITAL 40-200A
Compact charger with LCD display, WOWa profile for a charge in 8h
HERA 8 DIGITAL offers a complete range of chargers with modern digital technology. The digital card immediately displays the battery voltage, charging current, restored capacity, charging time.It also allows you to easily configure the functionality of the charger through the Keypad. The excellent charging efficiency is more than 90%. Profile of charge is W0Wa for charging time of 8H.
Specifications
- Indication on LCD of charge parameters: Voltage, Current, reintegrated Capacity, charge Time
- The simple keypad allows a safe configuration of the parameters: battery Voltage, Gas point Voltage, final charging Time, enabling Equalization.
- Charging Profile available: W0Wa, W0Wp, fast charge according to DIN41773
- Very high efficiency superior to 90% and Power factor of 0,80 allow low energy consumption
and charging costs
- Equalization Charge and Maintenance Charge
- Maximum and Minimum voltage control before charging starts
- Maximum voltage control during charge
- Single board model from 12V to 96V
- Serial interface for highly precise programming and calibration
- Short circuit, overload and reverse polarity protection
- IP20 intrusion protection
- Internal Design, Testing and Production of Power Transformers
- Thermal protection on the power transformer
- Conformal coating on the control card for moisture protection to grant high reliability
- Excellent ventilation system for better cooling of the transformer
