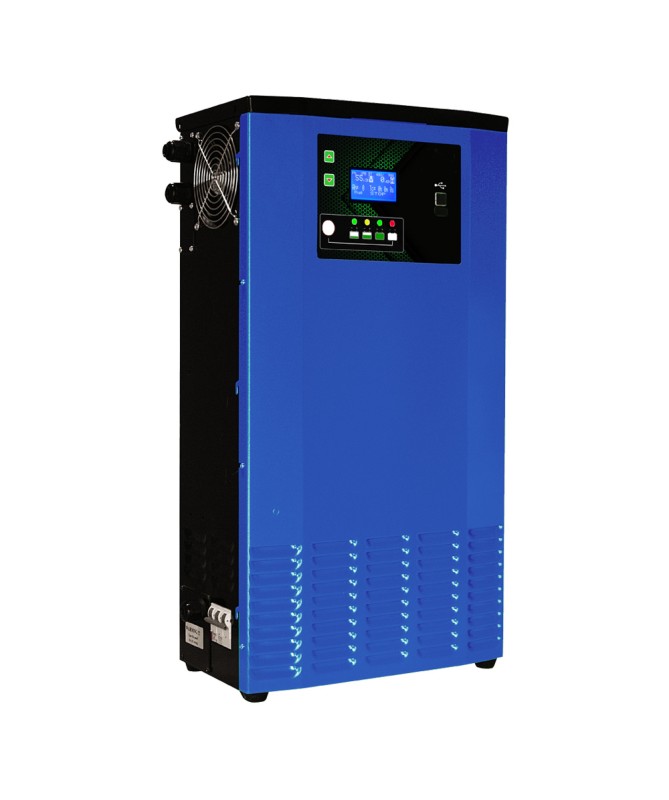

CH2 Modular 50-300A
A family of modular chargees with programmable charging profiles for every battery technology
The CH2 is a family of three-phase, modular, high-frequency battery chargers, with programmable profiles, for any type of battery and ready for use with Lithium Ion thanks to its CAN bus communication. The modular system is easy to maintain. The Can Bus protocol can be customized to meet the specifications of the battery BMS.
Specifications
- Three-phase battery charger
- High-Frequency Switching Technology High-efficiency technology and new technical design for optimal thermal performance of the battery
- Programmable via front panel or USB Type A/B port
- Suitable for Lead-Acid Batteries, Sealed eGEL Traction, AGM, Lithium-Ion
- CAN/CAN-OPEN communication for lithium batteries
- High efficiency over 90%
- Various power configurations available
- Multi-current configuration
- Charging curves customizable via software
- Data and Graph Memory last 150 charging cycles
- HF View software even
- Modular system (3 or 4 configurable modules) Power up to 21 kW, up to 300A @ 48V, up to 200 @ 80V, up to 150A @ 96V Programmable via USB type A/B port or via display
- Graphic display
